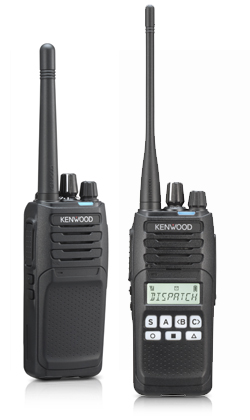

The new, feature-rich, entry-level hand-portable radios available in two versions, DMR or NXDN
NX-1000 Series radios redefine the term entry-level in hand-portable digital two-way radios with features and functionality you would usually find only in much higher priced models.
Moreover, they offer the choice between the proven, ITU accepted NXDN, or ETSI compliant DMR protocols, automatic Digital / Analogue mixed-mode operation and bring industry-renowned KENWOOD audio quality, advanced worker safety features and performance to a budget-friendly price point.
General Features
► DMR or NXDN digital CAI versions are available
► Choose from direct & intuitive LCD with Standard keypad or Basic versions
► Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
► Large 7-Color LED indicator on the top panel
• Selective Power-on LED
• Selective Call Alert LED
• Battery Level Indication
• Multi-status function indication
► RF output power 5W both on VHF/UHF
► Wide band UHF 70MHz coverage
► Renowned KENWOOD Audio Quality: TX/RX audio profile with optimisable digital processor
• Audio Equalizer: Flat, High, Low
• Auto Gain Control: On, High, Low, Off
• Noise Suppressor
• Microphone type settings
► Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
► VOX & PTT – triggered Semi- VOX, Voice-operated TX
► Emergency Function: Customisable Emergency Profile
► Lone Worker
► Max / Min Volume setting & Volume control
► Voice Announcement
► Remote Stun / Kill / Check
► Front Panel Programming Mode (for Keypad model)
► Electronic Serial Number (ESN)
► MIL-STD-810 C/D/E/F/G
► IP54 and IP55
|
DIGITAL DMR MODELS
• TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
• DMR Tier II Conventional Operation
• Site Roaming
• DMR Auto Slot Select
• Dual Slot Direct Mode
• Digital / Analogue Mixed mode
• Call Interruption
• Group / Individual Call
• Status / Short data, Paging Call
• Remove Stun / Kill, Monitor, Check & Control
• Enhanced Encryption (ARC4)
• Digital Bit Scrambler
• Late Entry
• Over-the-Air Alias (OAA)
► Click here for DMR models
|
DIGITAL NXDN MODELS
• FDMA - Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
• NXDN Conventional Operation
• Site Roaming
• Digital / Analogue Mixed mode
• Group / Individual Call
• Status / Short data, Paging Call
• Remove Stun / Kill, Monitor, Check & Control
• Digital Bit Scrambler
• Late Entry
• Over-the-Air Alias (OAA)
► Click here for NXDN models
|
ANALOGUE - FM FEATURES
• FM Conventional Operation
• FleetSync: PTT ID, Stun/Revive, Talk back, Selcall
• MDC1200: PTT ID, Radio Inhibit/Uninhibit, Radio check, Emergency
• QT / DQT, DTMF, 2-tone, 5-tone
• Built-in Programmable Voice Inversion Scrambler (per channel)
• Built-in Compander (per channel)
