KAS-10 and KAS-20 software suite features at a glance

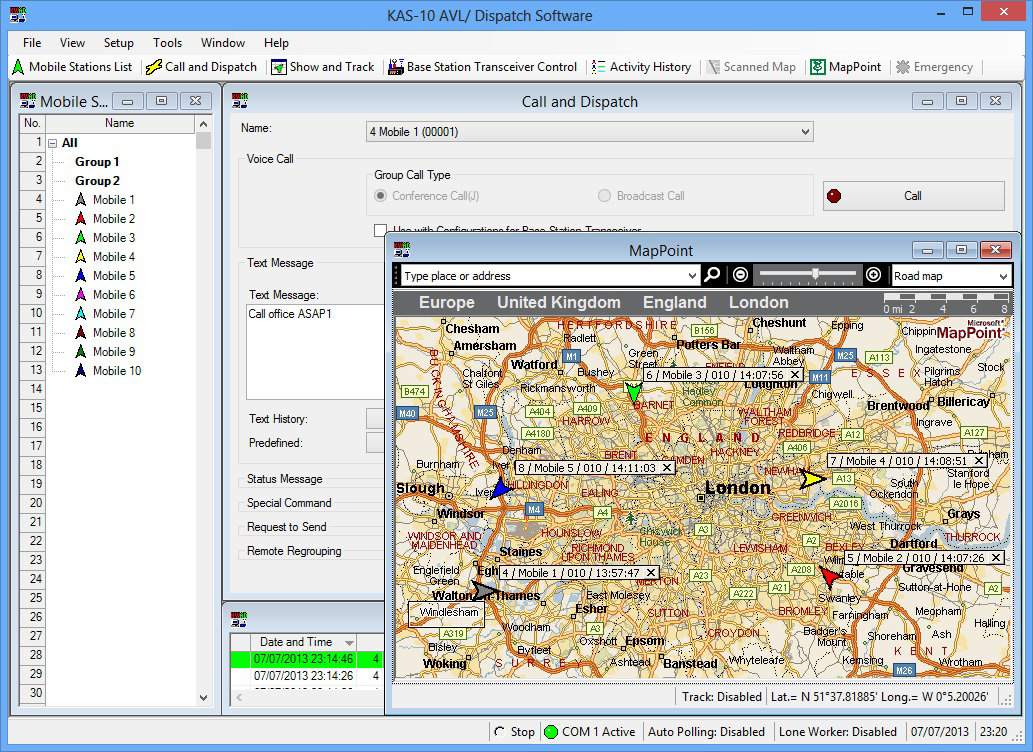

KAS-10

Simple DMR, NXDN & Analogue Compatible AVL and Dispatch Software Application

► Overview

•  Single Channel single Operator dispatch
•  Low-cost, simple to implement Windows software application
•  AVL using Google Earth™ Maps (KMF Output)
•  Hosts Man Down functionality
•  PC Connects to a mobile radio
•  Keyboard and mouse required
•  Supports NXDN, DMR and analogue
•  Digital Dispatch Signalling and Messaging:
   - Individual, Group & Broadcast Voice Calls
   - Status messages
   - Text messages
   - Displays radio power On/Off messages
•  Mobile ID Capacity is 999 IDs:
   - Maps compatibility
   - Works with custom WAV file import
   - 5-Tone & FleetSync voice calls
•  Voice and data recording user activity




























► Fleet Management Features

•  Google Earth Compatible GPS data logging/replay
•  KML File output
•  Auto & manual polling / Lone Worker
•  Stun / Remote Kill / Emergency / Man-Down
•  AVL operation requires radio GPS function, as found in the NX3000 series radios
•  Optional KMC-47GPS/48GPS Speaker Mics with portables








► Dispatch and Voice Recording Features

•  Voice recording, records receive audio from the mobile gateway radio only
•  Text and status Messages
•  20 Pre-defined Text Message List
•  No patching
•  Status Message Request
•  Horn Alert
•  Lone Worker (FleetSync® & NEXEDGE®)
•  Calls, messages and GPS reports recorded to PC hard disk

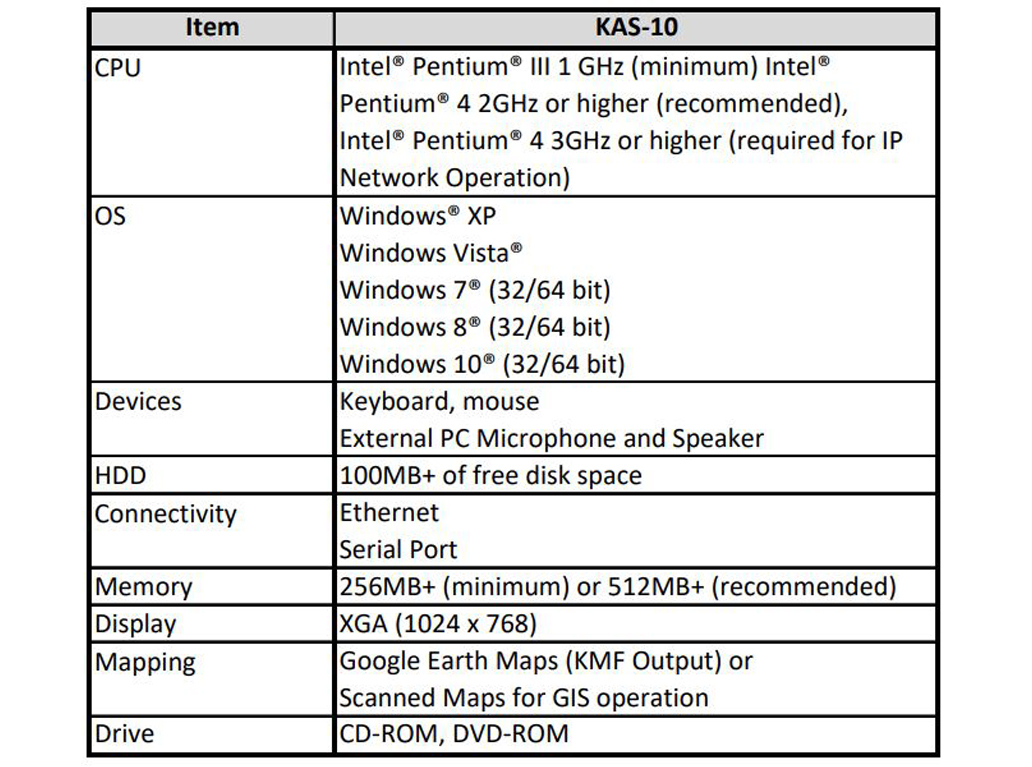

► PC system requirements

► Compatible Communication Systems

KAS-10 connects to a mobile radio and this provides the RF connectivity to the radio system







► Click for KAS-10 information

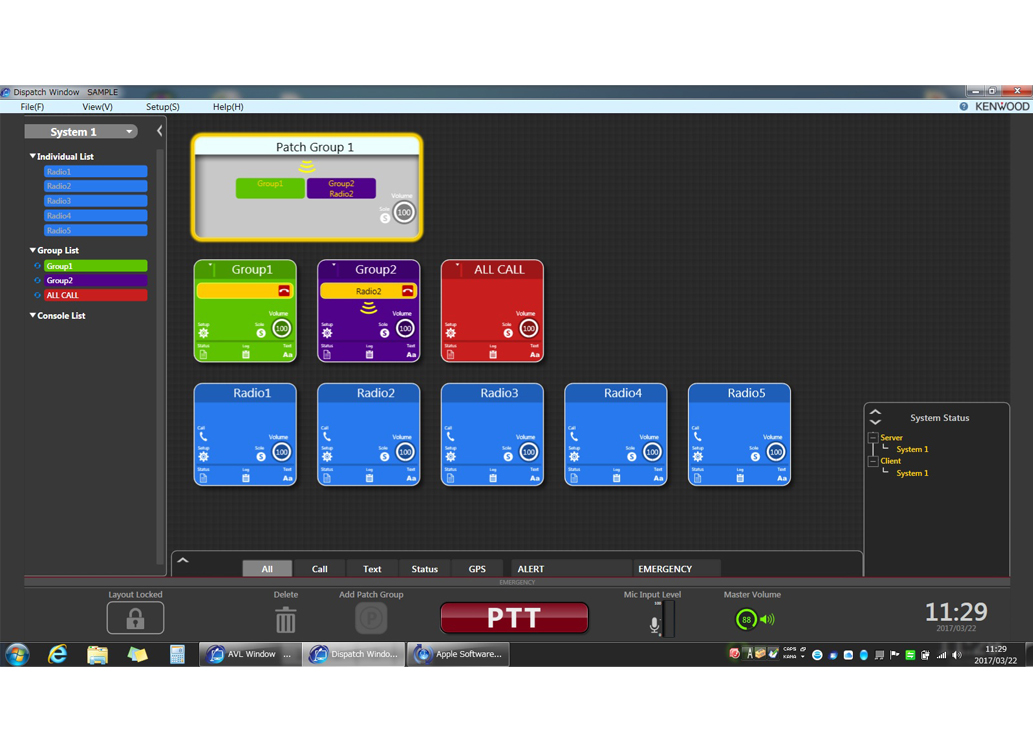

KAS-20

Feature-rich DMR & NXDN Compatible AVL and Dispatch Software Suite

► Overview

•  Multi-operator multi-radio dispatch
•  Client server configuration with up to 10 clients, operators, and 8 radio systems
•  AVL using Open Street Maps or Google Earth™ Maps (KMF Output)
•  Hosts Man Down functionality
•  IP connection from server and despatch clients to radio system
•  Optional use of a mobile radio gateway
•  UI design with emphasis on functionality and ease of use
•  Optional mouse and keyboard for despatch
•  Supports NXDN, DMR
•  Supports diverse digital radio systems simultaneously
•  Digital Dispatch Signalling and Messaging:
   - Individual, Group & Broadcast Voice Calls
   - Status messages
   - Text messages
   - Displays radio power On/Off messages
   - Location Management (1000 clients)
   - Voice Dispatch
   - Multi-client capability for a server
   - Voice Record and RF System functions
•  Multi-role dispatching functions:
   - IP Voice dispatch console
   - AVL, fleet monitoring and mapping
   - Call log and Event sharing
   - Voice recording/playback
•  Supports multiple KENWOOD IP interfaces:
   - DMR Conventional
   - KENWOOD DMR S-Type Trunking
   - DMR Tier 3 Trunking
   - NXDN Conventional
   - NXDN Type-C and Gen2 Trunking
•  Innovative, highly optimised GUI
   - User configurable call windows and patch windows
   - Map with editable unit icons, groups and imported layers
   - Shortcut keys and configurable key bindings
•  Server managed user levels, configurations, and permissions; Up to 30 users can be registered with 10 simultaneous logins
•  Server stores all communications log and data such as GPS, status, messages, audio, etc.
•  Import/export asset lists (e.g., unit, group, fleet) via TSV format
•  Manual/auto asset list creation

► Fleet Management Features

•  Location management for up to 1,000 subscriber units
•  Compatible with OpenStreetMap and Google maps Pin multiple detailed scanned maps over large-scale maps
•  KML and CSV export
•  Add layers with location specific information
•  Image layers can be individually switched on or off via Additional Layer Window
•  Stun/Revive and Kill
•  Remote monitoring
•  Auto & manual polling / Lone Worker / GPS time mark / Geofencing / Track units / Go to home position, etc.
•  AVL operation requires radio GPS function, as found in the NX3000 series radios
•  Optional KMC-47GPS/48GPS Speaker Mics with portables

► Dispatch and Voice Recording Features

•  Capable of simultaneous recording of up to 8 paths
•  AMBE+2, software vocoder - exports voice data to MP3 data format
•  Text and status messages
•  Prestored status and text messages
•  3 configurable software patch group
•  Configurable Call Box window:
   - User configurable screen layout
   - Configurable button size and colour
   - Adjustable volume/mute per call box
   - UID/alias indicator - Configurable colour and size
•  Lone Worker (FleetSync® & NEXEDGE®)
•  Calls, messages and GPS reports and system logs all recorded to PC hard disk

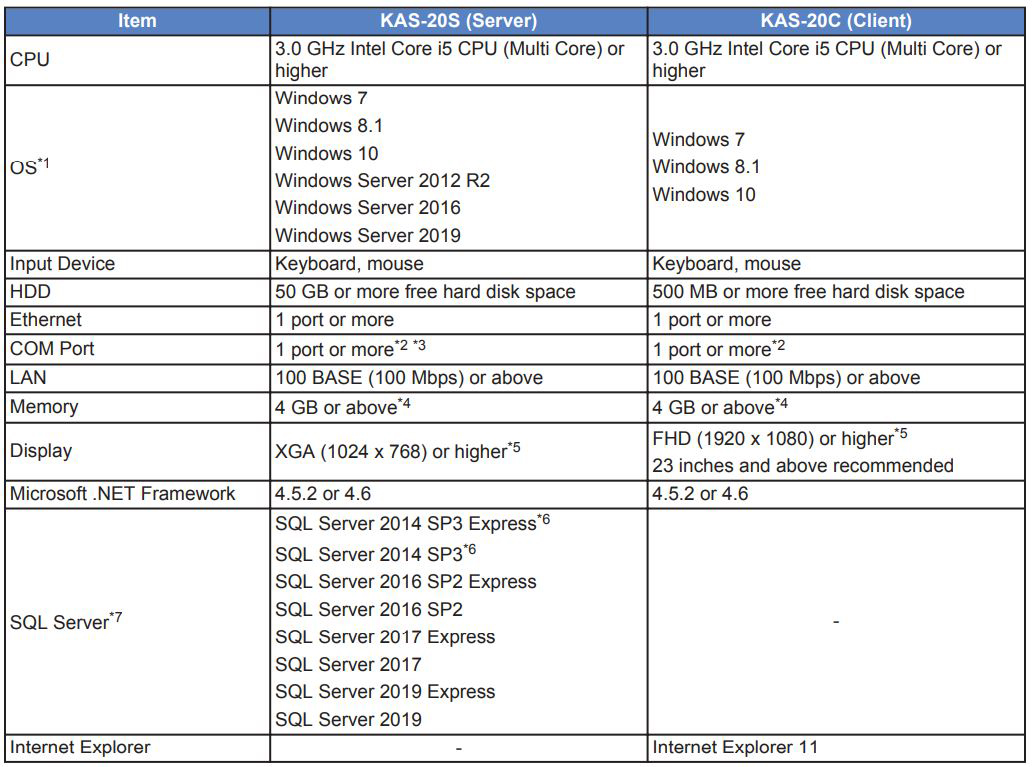

► PC system requirements

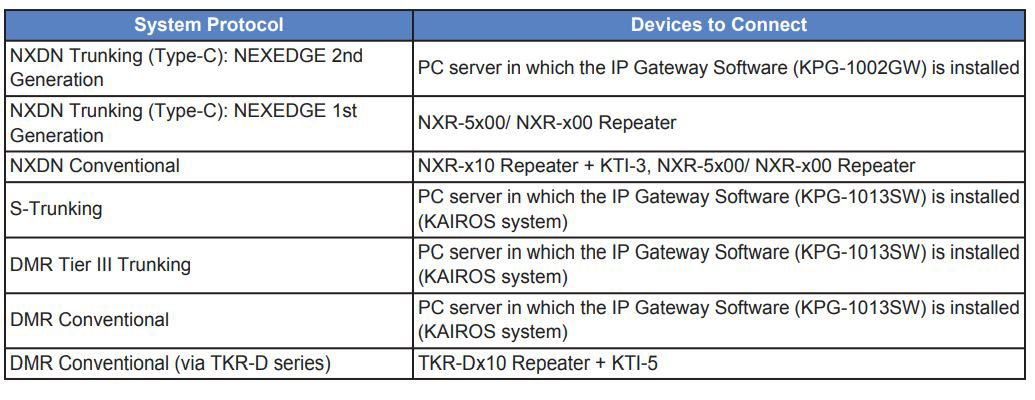

► Compatible Communication Systems

► Click for KAS-20 information
